Product Details

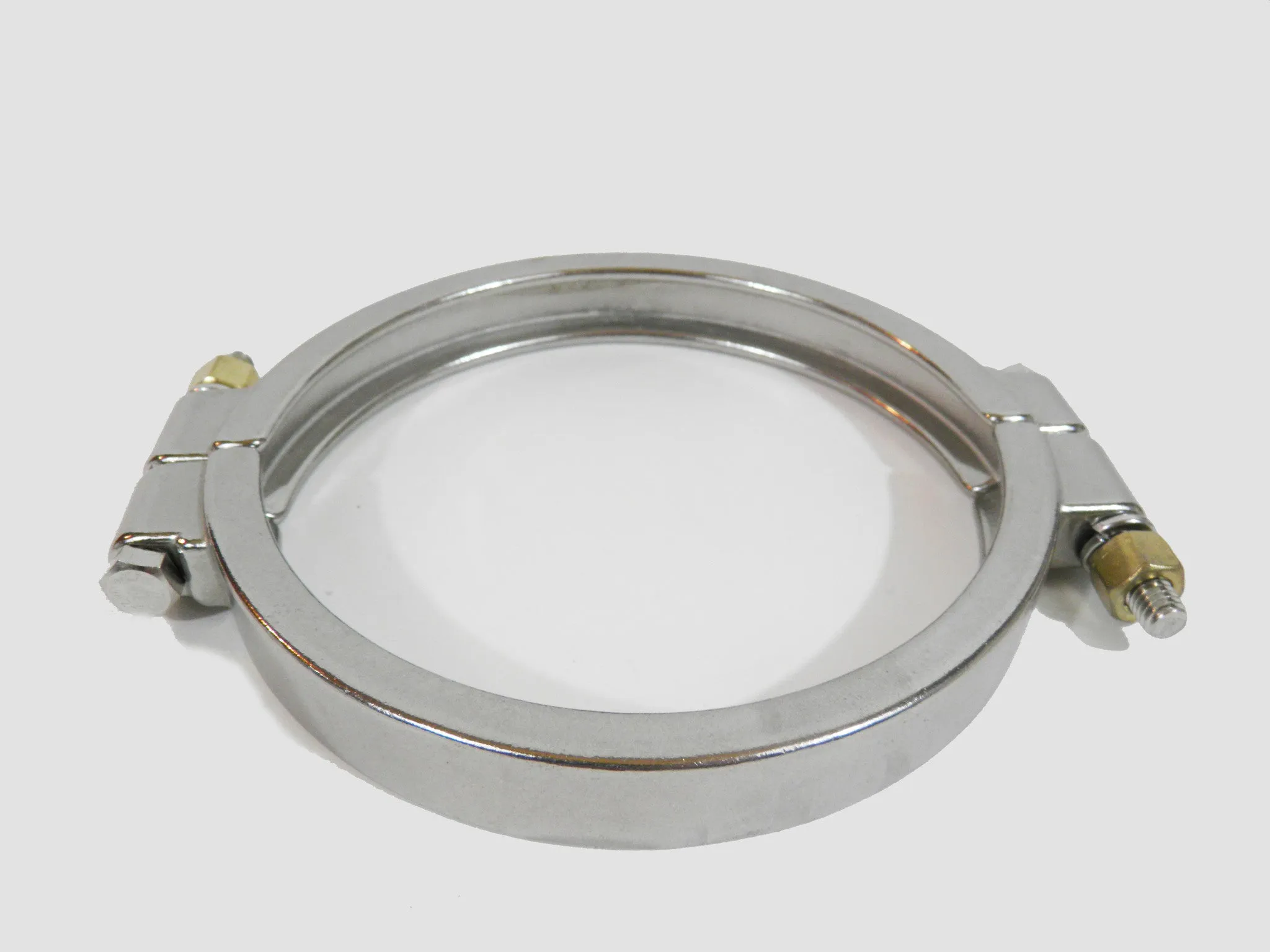

＋These 3" high pressure clamps are secured with SS304 bolts, lock washers and brass hex nuts on both sides. The bolts, lock nuts and brass hex nuts are easily replaceable as needed.
- Maximum Pressure Rating at 70° F: 1000 psi
- Maximum Pressure Rating at 250° F: 800 psi
DETERMINING TRI CLAMP SIZE
Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.
If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to .
